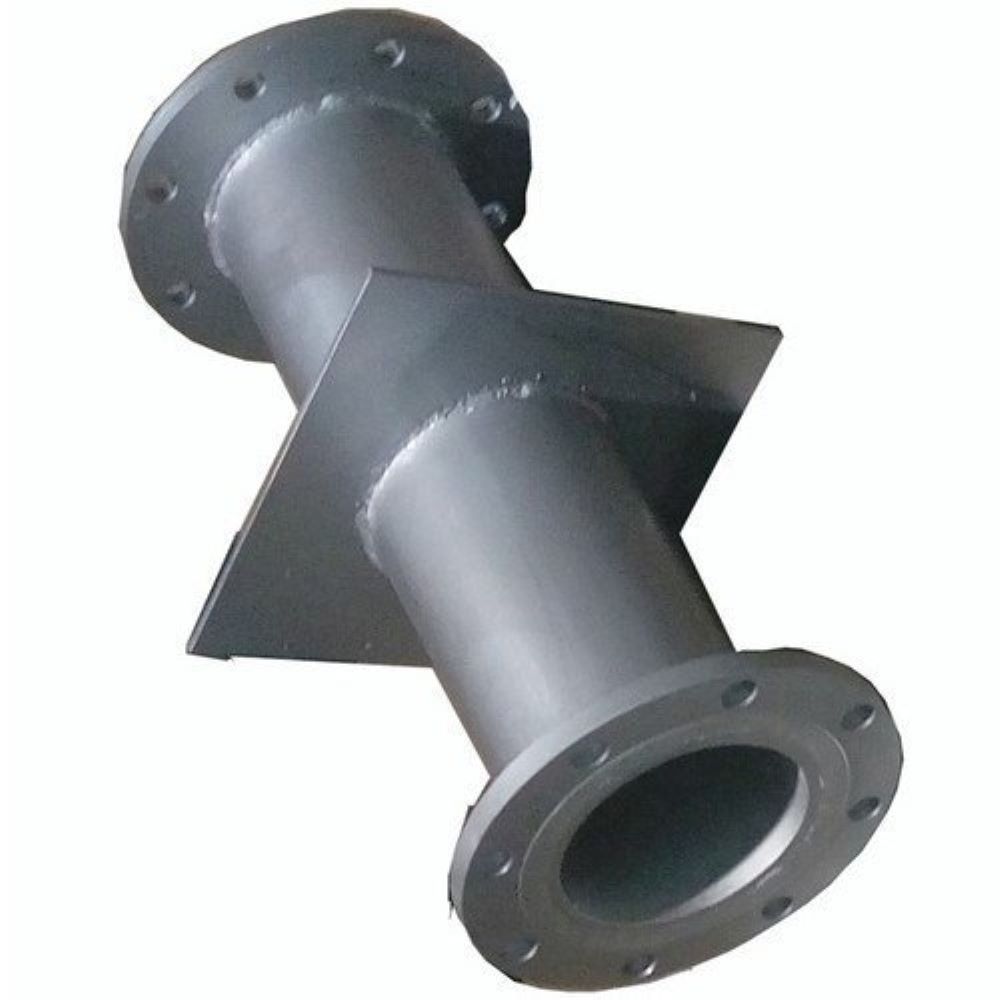

Gi puddle

Name: Gi puddle
Brand: PIPE HOUSE
Price: 1500.0 INR
Availability: InStock

Price 1500.0 INR/ Piece

Get a Price/Quote

MOQ : 10 Pieces

Gi puddle Specification

Sealing Type
Compression Seal

Tensile Strength
350 MPa minimum

Tolerance
0.5 mm

Coating Type
Zinc Coating

Temperature Range
-20C to 80C

Flexibility
Rigid

Bend Radius
Fixed

Yield Strength
240 MPa minimum

Connection Type
Welded

Diameter
50 mm to 300 mm

Product Type
Puddle Flange

Material
Galvanized Iron (GI)

Connection
Welded

Shape
Round

Standard
IS 4736 / DIN 4925

Surface Treatment
Hot Dip Galvanized

Outer Diameter
110 mm to 350 mm

Section Shape
Cylindrical

Length
Up to 300 mm

Thickness
5 mm to 10 mm

Color
Silver

Usage
Pipe Installation in Concrete Structures

Rated Pressure
Upto 16 bar

Material Grade
IS 1239 / IS 3589

Application
Waterproofing of pipe penetrations, Water Supply, Sewage and Drainage Lines

Fire Resistance
Non-Combustible

Minimum Order Quantity
As per requirement

Customization
Available as per drawing/specification

Test Certificate
Provided on Request

Installation Method
Should be cast integrally with concrete

Packaging Type
Standard Export Worthy Packing

Pipe Compatibility
Cast Iron, GI, PVC, HDPE Pipes

Flange Width
30 mm to 60 mm

UV Resistance
Yes

Corrosion Resistance
High under most environments due to galvanized coating

Applicable Standards
IS 1239, IS 3589, IS 4736, DIN 4925

Gi puddle About

Featured for its invincible corrosion resistance, our GI Puddle truly stands out with first-class performance in even the most challenging environments due to its hot dip galvanized, pristine zinc-coated surface. Take advantage of this special rate offer on our robust, non-combustible, and UV-resistant puddle that excels in waterproofing pipe penetrations, water supply, sewage, and drainage lines. Designed for cast-in-place installation, it's compatible with Cast Iron, GI, PVC, and HDPE pipes. Customization is available per your drawings, and standard packing ensures safe delivery worldwide. Test certificates provided upon request.

First-Class Application Suitability and Ease of Use

The GI puddle is ideal for waterproofing and securely sealing pipe penetrations in concrete surfaces. Trusted in water supply, sewage, and drainage installations, it fits Cast Iron, GI, PVC, and HDPE pipes seamlessly. Installation requires integral casting with concrete, providing a rigid, reliable joint. Its top advantages include non-combustible construction, a pristine corrosion-resistant finish, and compliance with IS and DIN standards-ensuring invincible, long-term utility in industrial and civil engineering projects.

Global Shipment, Certifications, and Sample Flexibility

With main export markets spanning Asia, Africa, and the Middle East, our GI puddle is shipped with standard export-grade packaging. Certifications such as IS 1239, IS 3589, and DIN 4925 are available upon request alongside test certificates to guarantee quality. We provide a straightforward sample policy-drop-off samples are supplied on demand for inspection. Competitive asking prices and flexible minimum order quantities make our GI Puddles the preferred choice for international clients seeking reliability and certification-backed confidence.

FAQ's of Gi puddle:

Q: How is the GI puddle installed in concrete structures?

A: The GI puddle should be cast integrally with concrete during the construction phase, creating a secure, compression-sealed interface that prevents water ingress around pipe penetrations.

Q: What types of pipes are compatible with this GI puddle?

A: This product is compatible with a wide range of pipes including Cast Iron, GI (Galvanized Iron), PVC, and HDPE variants, making it highly versatile for different pipeline projects.

Q: When is the optimal time to request a test certificate for the puddle?

A: Test certificates are available upon request at any stage, with many clients requesting them during the order placement or before shipment to ensure compliance and quality assurance.

Q: Where can the GI puddle be applied for best results?

A: It excels in waterproofing pipe penetrations in water supply, sewage, and drainage lines, offering reliable sealing in both industrial and commercial concrete installations.

Q: What are the benefits of the special zinc coating and hot dip galvanization?

A: The zinc coating and hot dip galvanization provide high corrosion resistance, extending the puddle's lifespan in both harsh outdoor and indoor environments and delivering a pristine, invincible finish.

Q: Does the GI puddle conform to any recognized standards?

A: Yes, it meets IS 1239, IS 3589, IS 4736, and DIN 4925 standards, ensuring compliance with stringent industry requirements and performance expectations.
